Router Internet Light Is Off or Red: What to Check First
First 100 Words Quick-Fix/Triage
Check this first: look at the modem or ONT before changing router settings. A router Internet light that is off or red usually means the router cannot reach the upstream internet path, not that Wi-Fi itself is broken.
Make sure the modem or ONT is online. Then check the Ethernet cable from the modem or ONT to the router WAN or Internet port.
Do not factory reset yet.
Contact your provider if the modem or ONT will not come online, a direct Ethernet test also fails, or the provider outage page shows a problem.
What a red or off router Internet light usually means
The Internet light, sometimes called the WAN light, shows whether your router can reach the internet path coming from your modem, ONT, gateway, or provider equipment.
It does not usually measure Wi-Fi strength.
That matters because your Wi-Fi name may still appear on your phone even when the router has no working internet connection. In that case, your device can connect to the router but still have no internet access.
A red, amber, or off Internet light can point to several things:
The router is still booting.
The modem or ONT is not online.
The Ethernet cable is loose or bad.
The cable is plugged into the wrong port.
The router has no WAN IP address.
The ISP has an outage or account issue.
The router WAN settings are wrong.
Do not assume every red light means the same thing. Router light meanings vary by brand and model. Treat the light as a warning, then use the checks below to find the cause.
Step-by-step troubleshooting checklist
Step 1: Wait for the router to finish booting before judging the Internet light.
Step 2: Check the modem, ONT, or gateway first. If its Online, Broadband, DSL, PON, or service light looks wrong, focus there before blaming the router.

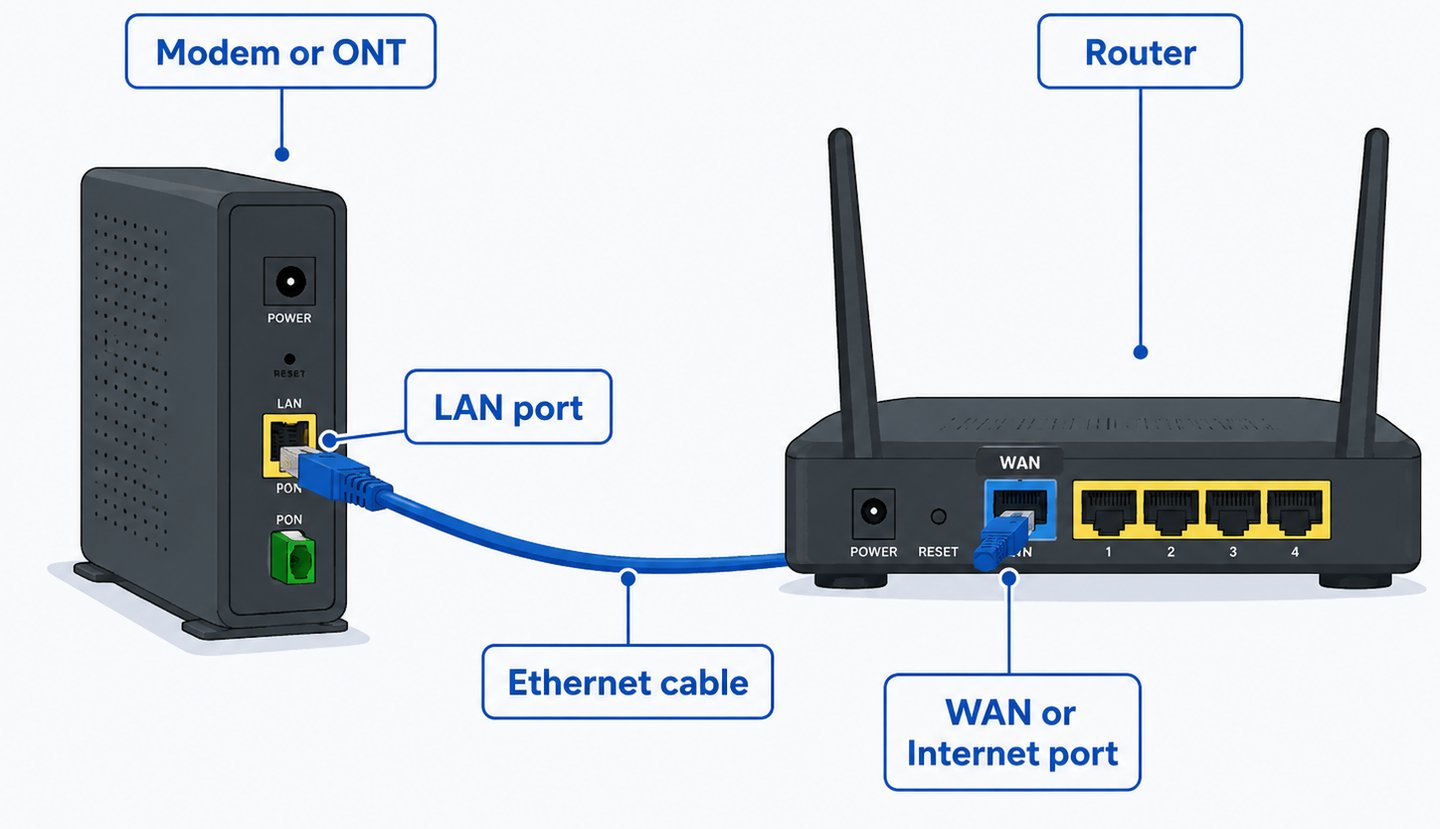

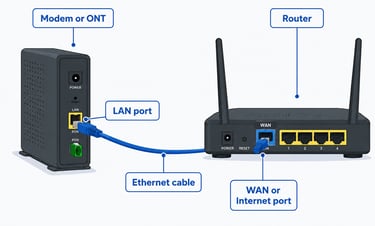

Step 3: Confirm the Ethernet cable runs from the modem or ONT LAN port to the router WAN or Internet port.
Step 4: Reseat both ends of that Ethernet cable.
Step 5: Try a different known-working Ethernet cable between the modem or ONT and router.
Step 6: Power off the router and modem or ONT for 30 to 60 seconds.
Step 7: Turn on the modem or ONT first and wait until it is fully online.
Step 8: Turn on the router second and wait until it finishes booting.
Step 9: Log in to the router app or admin page and check whether the WAN status says connected, disconnected, no IP address, DHCP failure, or PPPoE failure.
Step 10: If you can, connect one computer directly to the modem or ONT by Ethernet, then restart the modem or ONT before testing.
Step 11: If the direct test works, focus on the router, WAN cable, WAN port, or WAN settings.
Step 12: If the direct test does not work, check the provider outage page or contact your ISP.
Step 13: Factory reset only after you record provider settings such as PPPoE, VLAN, IPTV, or MAC clone details if your service uses them.
What your results mean
Use the table as a decision point, not a universal color chart. Your router manual has the final answer for exact light meanings.
What not to do yet
Do not factory reset first.
A reset can erase settings you may need, including PPPoE login details, VLAN settings, IPTV profiles, cloned MAC settings, and custom WAN configuration. That can turn a small problem into a setup problem.
Do not buy a new router yet.
A red or off Internet light can happen even when the router is not broken. The cause may be the modem, ONT, cable, provider line, outage, or account provisioning.
Do not change random advanced settings.
If you change DHCP, PPPoE, VLAN, bridge mode, or passthrough mode without knowing what your provider uses, you may create a second problem.
Do not blame Wi-Fi first.
If the Internet or WAN light is bad, the issue is usually between the router and the upstream internet path. Wi-Fi comes after that. Your phone may still show the Wi-Fi name, but that does not prove the internet connection is working.
When to contact your provider
Contact your ISP or provider when any of these are true:
The modem or ONT does not reach a normal online state.
The provider outage page shows a local issue.
A direct computer-to-modem or computer-to-ONT test fails.
The router never receives a WAN IP address.
The router shows PPPoE authentication failure and you do not know the correct login.
Your provider requires VLAN or IPTV settings and you do not know the right values.
The same red or off light returns after a correct restart and cable check.
Give the provider clear information.
Tell them:
The router Internet or WAN light is off, red, or amber.
The modem or ONT light state.
Whether the modem or ONT is separate from the router.
Whether you tried another Ethernet cable.
Whether the cable is in the router WAN or Internet port.
Whether a direct Ethernet test worked.
Any router message such as no WAN IP, DHCP failed, or PPPoE failed.
This helps the support agent check line status, provisioning, outage status, and account settings faster.
Related HomeNetCompass guides
If you are not sure which box is causing the issue, use the router vs modem guide.
If you changed ports or reset settings and need to rebuild the basics, use the router setup guide.
If you need to compare a wired test with Wi-Fi behavior, use the Ethernet vs Wi-Fi guide.
FAQ
Why is my router Internet light red?
A red Internet light usually means the router cannot reach the upstream internet path. The cause may be the WAN cable, modem, ONT, router WAN settings, provider outage, or account provisioning.
Why is my router Internet light off but the power light is on?
The router may be powered on but not seeing a working WAN link or internet session. Check the modem or ONT, then the Ethernet cable from that device to the router WAN or Internet port.
Should I factory reset the router?
Not first. Restart, check the modem or ONT, reseat the WAN cable, test another cable, and check the router WAN status first. Reset only after you know you will not lose needed provider settings.
Can Wi-Fi still show if the Internet light is red?
Yes. Your device can connect to the router’s Wi-Fi network even when the router itself has no working internet path. Wi-Fi connection and internet access are not the same thing.
Is the router broken if the Internet light is red?
Not necessarily. The router may be fine. The problem may be the modem, ONT, cable, WAN port, ISP outage, or provider settings. Test before replacing hardware.
Final takeaway
A router Internet light that is off or red is usually an upstream connection problem, not a Wi-Fi coverage problem.
Check the modem or ONT first. Then check the WAN cable, router WAN port, restart order, and router WAN status. Use a direct Ethernet test to separate router-side problems from provider-side problems.
Do not reset or replace the router until those checks are done.
